X-ray System for Spiral Pipes

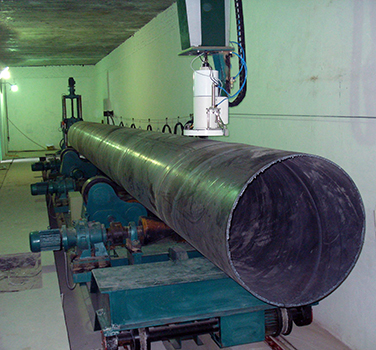

"DDNDT" X-ray Inspection System for Spiral Pipes consists of a Utility Frequency X-ray Generator, Image Intensifier, X-ray Probe Arm, Defect Marking Device, Computer Image Processing System, Control Console, and Lead Guard Room. The system uses PLC program control to quickly and accurately detect steel pipe (ring weld, straight seam) defects. User-friendly software, simple interface, easy to operate, and the software functions are customizable according to the type of inspections.
Technical Specifications:
| Item | Origin | Model | Type |
| X-ray Tube | US Switzerland | 10-450kV | Metal Ceramic |
| High Voltage Generator | Imported China | Utility Frequency/ High Frequency/ Constant Frequency | 225KV |
| Control Console | China | DTK-1 | For Imported/ China Generator |
| Imported | US Switzerland | For Imported Generator | |
| Cooling System | China | Oil Cooling | 3010-4510 KV |
| Water Cooling | Less than 225KV | ||
| Generator Wheel Kits | China | U-Type | Hoisting |
| C-Type | Fixed | ||
| Customized | According to the actual situations | ||
| Imaging Device | China | Real-Time Imaging | 2D Graphics |
| China Imported | Flat Panel Imaging | 2/3D Graphics | |

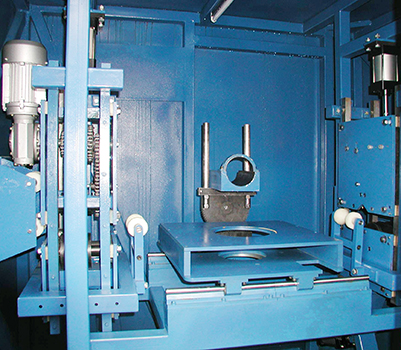

| Mechanical Transmission System | China | 2D | Basic |
| 3D | Standard | ||
| 5D | Multi-Function | ||

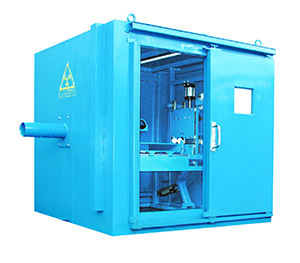

| Protection System | China | Protection Room | Construction |
| Lead Room | Made of Lead | ||
| High Voltage Cable | Imported | 5-20M | HV Resistant |
| Image Processing System | China | DTK-2 | Human - computer Interaction |
| Detection Material | Steel, Copper Copper Alloy, Aluminium Aluminium Alloy, Titanium Titanium Alloy, Nickel Nickel Alloy | ||
| Standard Penetration Thickness (mm) | Q235：2-250 | ||
